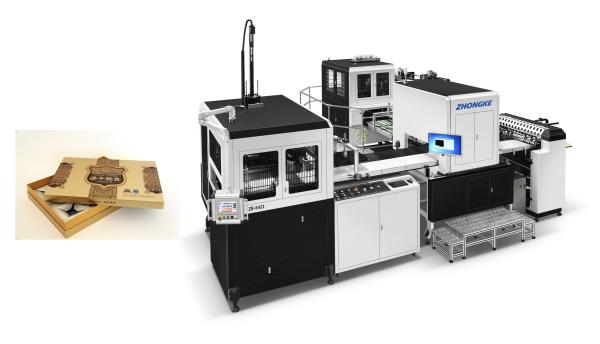

High Speed Paper Box Forming Machine For Handicraft , Electronic Paper Box

Name: High Speed Paper Box Forming Machine For Handicraft Electronic Paper Box
Brand: Zhongke
Price: 1 USD

Brand Name : Zhongke

Model Number : ZK-660FBS

Certification : CE, ISO900

Place of Origin : China

MOQ : Negotiation

Price : Negotiable

Payment Terms : 30% deposit+70%balance before shipment

Supply Ability : 10 sets per month

Delivery Time : 1month after received 30% deposit

Packaging Details : wooden pallet or wooden case

Name : Paper Box Forming Machine

Feature : High Speed

Application : Handicraft , Electronic Paper Box

Speed : 15-35pcs/min

Ear folding : 15-120mm

overall dimension : 6800mm×4300mm×3000mm

paper pile height : 260mm

Control : PLC Control

Contact Now

High Speed Paper Box Forming Machine For Handicraft , Electronic Paper Box

Paper Box Forming Machine Description:

The Paper Box Forming Machine adopts motion controller, visual manipulator for positioning ,HMI System,which make it possible that paper feeding, gluing, cardboard four corners taping, feeding, edge covering, full ear folding, forming and shaping of the finished box are completed in one operation.Through the electronic cam gear rack structure driving the box mold to operate, it can independently complete multiple deep folding operations so as to meet the requirements of high-end products and boxes free of folding trace in the market.

Paper Box Forming Machine configuration

Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
Visually positioning and manipulator capture system (positioning error ±0.05mm)
24-hour control of glue preheating;
Glue viscosity automatic control system (optional)
Completing multiple folding operations through servo driving box mold

Paper Box Forming Machine Specifications

Function mode selection
Box Size
L	max	400mm
L	min	85mm
W	max	300mm
W	min	60mm
H	max	125mm
H	min	12mm
Turn in depth
R	max	100mm
R	min	15mm
cover paper requirement
B	max	660mm
B	min	190mm
A	max	560mm
A	min	155mm
Precision Error		±0.05mm
paper pile height		260mm
Cardboard pile height		1000mm
power supply		38V 50Hz
Electrical power		27KW
Glue tank capacity		45L
Air supply		12L/min
Net weight		8100KG
overall dimension		6800mm×4300mm×3000mm

Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
